Radial and finite pair distributions

Use pair statistics to inspect local spacing, coordination shells, and chemical ordering. Open Analysis > Radial / Pair Distribution after loading a structure or selecting a trajectory frame.

Choose the correct quantity

Boundary conditions	Reported quantity	Meaning
Periodic in all three axes	Bulk g(r), dimensionless	Pair density divided by uniform bulk density
No periodic axes	Finite pair probability density, Å⁻¹	Probability of an unordered pair distance in each radial interval
Some periodic axes	Explicit error	A slab or wire needs a geometry-specific boundary correction

Vacuum in a fully periodic slab still contributes to the cell volume. Enabling all PBC flags does not turn a slab into homogeneous bulk: its g(r) normalization will depend on that vacuum. Do not change PBC just to bypass the partial-PBC error.

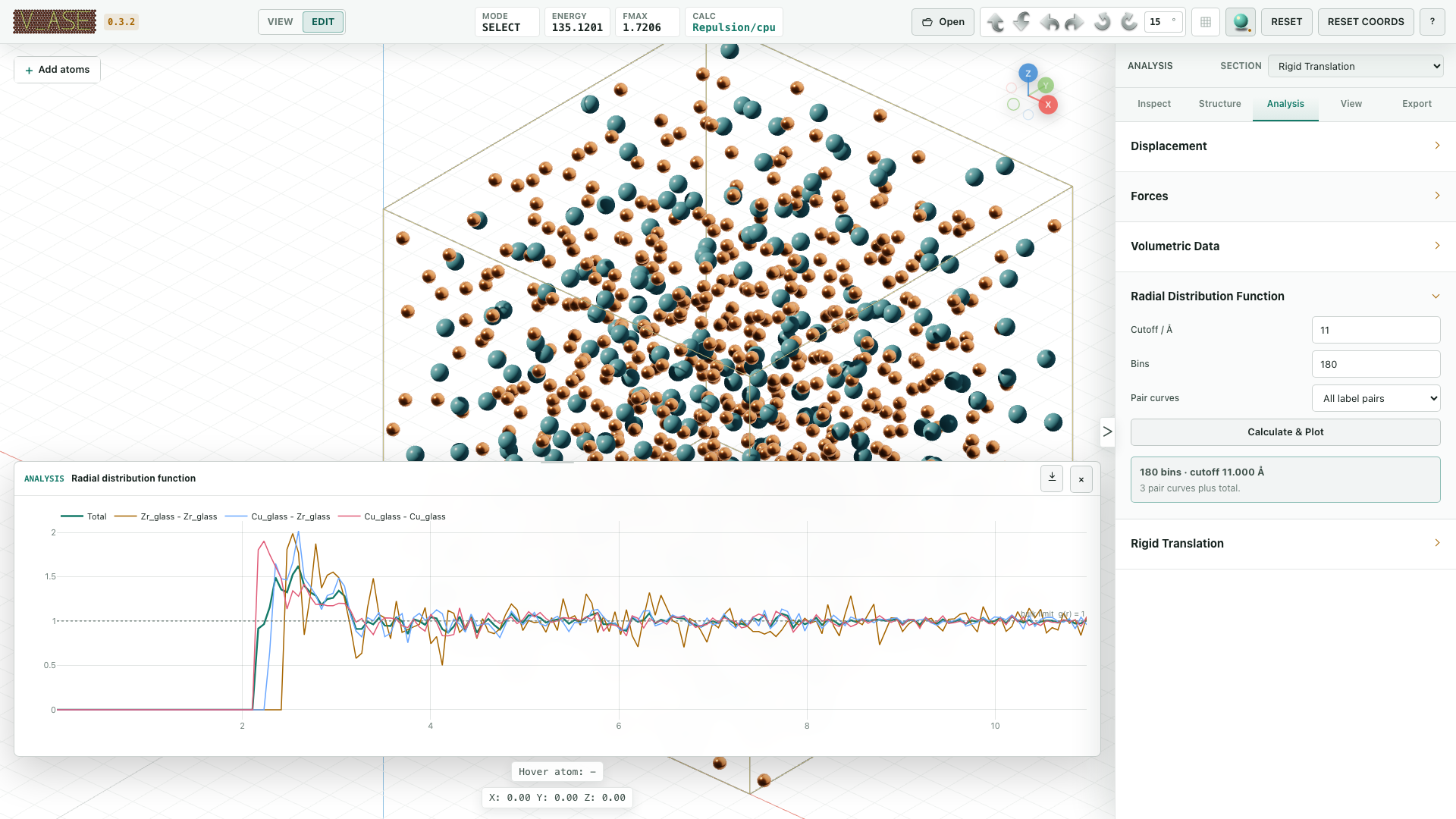

Calculate and interpret a plot

1. Select the intended frame. The plot uses the full physical structure, even when only some atoms are selected or a display supercell is visible.

2. Set a positive Cutoff / Å and an integer number of Bins from 8 to 5000.

3. Choose Total only, All label pairs, or the active/selected bond-pair filter.

4. Click Calculate & Plot. Verify the title, units, cutoff, and frame.

5. Export CSV to save the actual plotted total and partial curves.

The histogram includes distances on its final edge within floating-point tolerance. For periodic data, the search includes every image inside the requested sphere, including nonzero images of the same basis atom. A large cutoff is allowed and does not depend on displayed replication, but it samples repeated copies of this finite configuration rather than independent data.

The automatic cutoff is half the smallest cell-face height, a conservative unique-image reference. Increasing the bin count sharpens radial resolution while increasing noise. This is an instantaneous frame statistic; obtain an ensemble or time average separately if that is the desired observable.

Normalization and partial curves

For a periodic cell of volume V with N atoms, bin edges a,b, and directed neighbor count H, the total uses the exact shell volume:

shell = 4π/3 × (b³ − a³)
g(r) = H / [(N²/V) × shell]
g(r) = Σα cα² gαα(r) + 2 Σα<β cα cβ gαβ(r)

cα = Nα/N. Same-label partials use Nα²/V, and mixed partials combine both directions and use 2NαNβ/V. Thus concentration weighting reconstructs the total. Selected/active modes choose which label-pair curves appear; they do not restrict the population used for normalization.

For an independent finite-N periodic random configuration below the unique-image cutoff, the expected total is (N−1)/N, approaching one for large N. The dotted one-line is a bulk reference, not a promise that every finite curve reaches one.

For a finite structure, each unordered pair is counted once and divided by N(N−1)/2 and bin width. The integral is one only when the cutoff includes all pairs. Same-label partials use Nα(Nα−1)/2; a singleton label has a zero curve.

Compute and export in Python

This example creates an ideal random periodic reference and writes an RDF CSV. The returned radius, total, and partial arrays contain the plotted data.

from pathlib import Path
import numpy as np
from ase import Atoms
from v_ase.analysis import calculate_rdf, rdf_csv

rng = np.random.default_rng(7)
atoms = Atoms("Ar1000", scaled_positions=rng.random((1000, 3)), cell=[25]*3, pbc=True)
result = calculate_rdf(atoms, cutoff=8.0, bins=100, pair_mode="all")
Path("argon-rdf.csv").write_bytes(rdf_csv(result))
print(result.title, result.y_label, result.cutoff)

For a molecule, read it with ASE and leave its PBC false. The same function returns a finite pair distribution with the corresponding CSV column title.

Common interpretation mistakes

A visual bond cutoff is not an RDF distance cutoff. Displayed replicas do not add independent samples. A smooth homogeneous placement is correlated and should not be used as an ideal-gas normalization reference. A low repulsive energy does not establish chemical order or physical stability.

See trajectories for frame synchronization and scientific validation for the enumeration and normalization regressions.
