Constraints and relaxation

v_ase uses ASE as the authority for constrained coordinates and optimizer state. Constraint graphics explain permitted motion, but they do not replace the underlying ASE constraint or change its force law.

Constraint enforcement

Open Structure > Constraints in Edit. Apply constraints is enabled by default. A viewport transform is previewed interactively, then the proposed coordinates are committed through ASE and the backend returns the constrained result.

Turning Apply constraints off permits an unconstrained coordinate commit. It does not remove the constraint from the ASE object. Re-enable it before the next operation when subsequent edits should respect the stored constraint.

Verify the committed coordinates

The browser preview is not the scientific result. After moving a constrained atom, inspect the returned position or reopen the structure state. FixedLine and FixedPlane may remove components of the pointer-driven displacement.

Supported constraint state

v_ase preserves and serializes common ASE constraints, including FixAtoms, FixCartesian, FixedLine, FixedPlane, FixScaled, and Hookean. The built-in constraint editor creates or clears FixAtoms and the supported directional FixedLine/FixedPlane forms. Existing FixScaled, FixCartesian, and Hookean objects are preserved and rendered according to their ASE semantics rather than converted into a different backend constraint.

FixAtoms

FixAtoms prevents all Cartesian motion for its atom indices. Fixed atoms keep their element color but use a distinct constrained surface treatment. In the scene-wide 2D flat rendering mode they also receive an X marker.

To change selected atoms, use the FixAtoms control and apply the change. Recheck the selected indices afterward, especially if topology was edited.

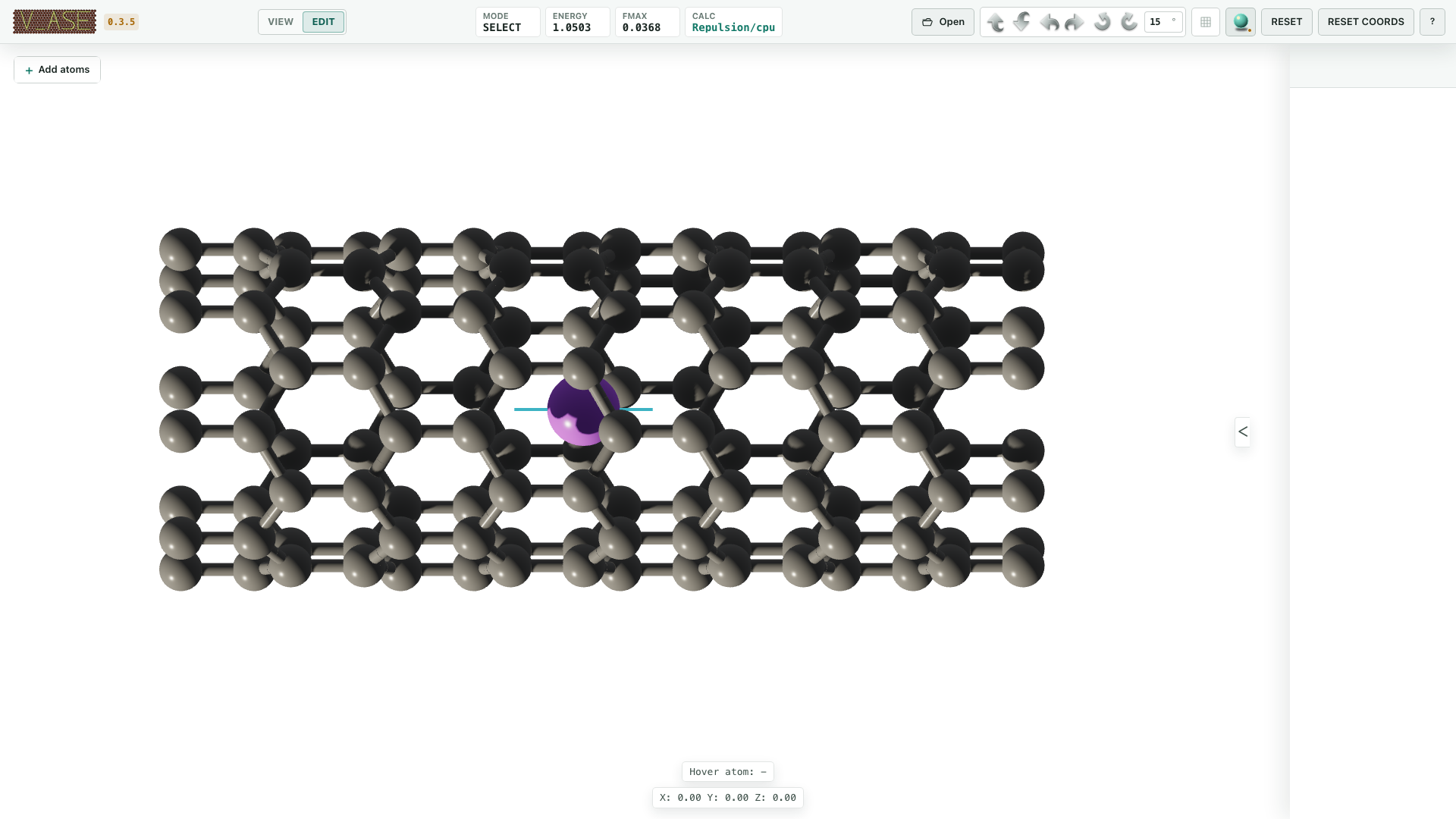

FixedLine

FixedLine allows motion only along one direction vector. Each constrained atom has its own short cyan axis, visible without selection. Starting G adds one long guide through the atom’s original position; rings and plane discs are not used for a line constraint.

To create it:

1. Select the intended atoms in Edit.

2. Choose Directional > FixedLine.

3. enter a nonzero three-component Vector;

4. select Apply Direction; and

5. move the atom and verify that only the vector-parallel displacement survives the backend commit.

FixedPlane

FixedPlane allows motion inside the plane whose normal is the stored direction vector. Each constrained atom retains a local ring, crosshair, and normal marker. Starting G adds a larger translucent permitted plane anchored at that atom’s original position. A multi-selection keeps independent per-atom planes; v_ase does not substitute one center-of-mass plane.

Create it by selecting Directional > FixedPlane, supplying a nonzero normal vector, and choosing Apply Direction. Confirm a test move with both in-plane and normal components and verify that the normal component was removed.

FixScaled and FixCartesian

VASP selective dynamics commonly enters ASE as FixScaled. v_ase derives its guide from allowed fractional cell directions:

• no allowed directions renders as fully fixed;

• one allowed direction renders as a line along the corresponding cell vector; and

• two allowed directions render as a plane spanned by those cell vectors.

This visualization remains cell-aware in skewed cells. Existing FixCartesian component masks are retained in serialized scientific state. Use ASE/Python when a workflow needs to author a constraint form that the GUI editor does not create directly.

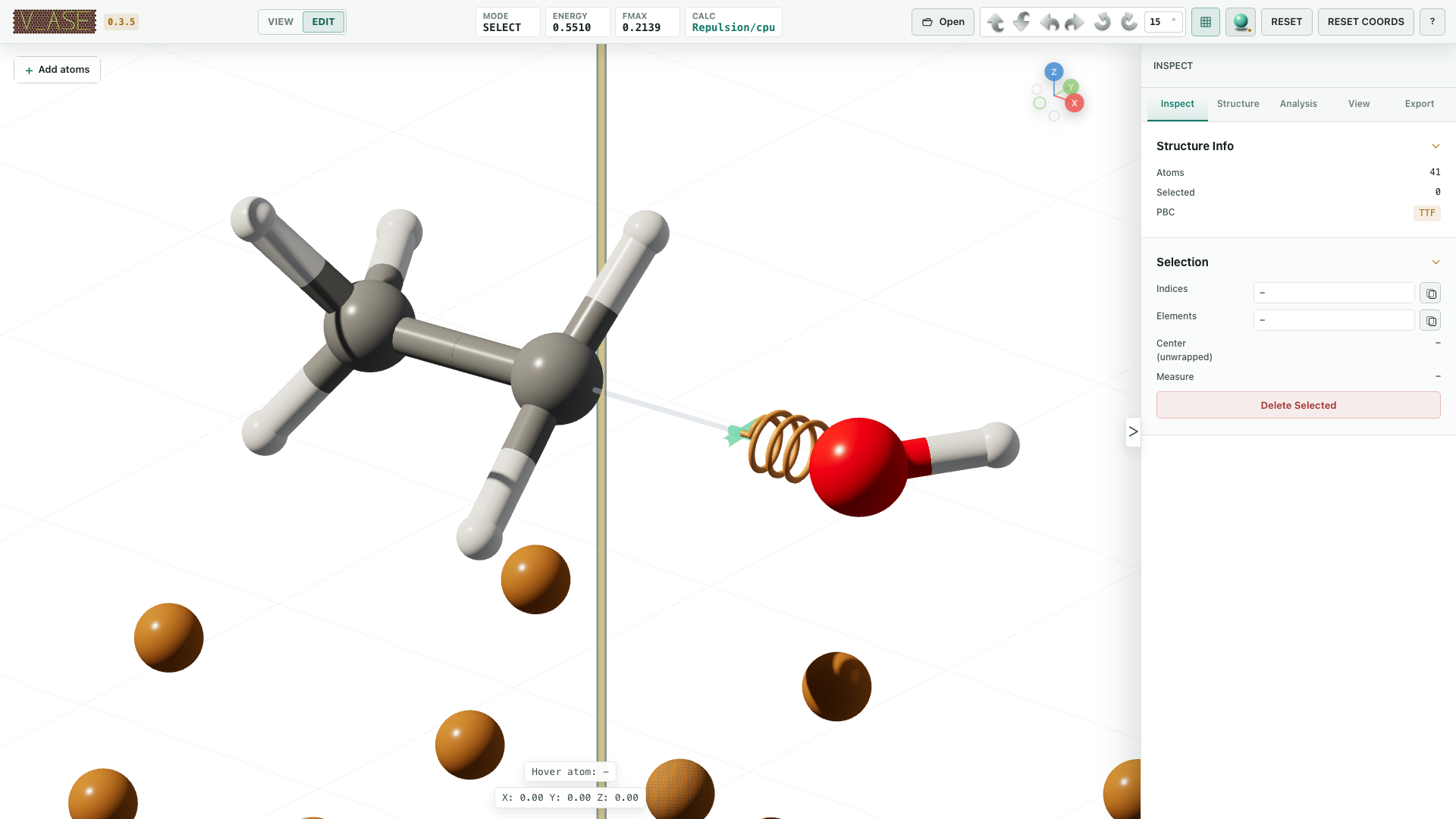

Hookean

For ASE Hookean(a1, a2, rt, k), the spring is inactive at r <= rt and the restoring-force magnitude after activation is:

|F| = k (r - rt),  for r > rt

v_ase reads rt and k from the live constraint. The 3D helix appears only when the displayed distance is beyond the threshold and follows every trajectory frame. It adds no numerical annotation that could obscure a dense structure and does not modify ASE’s force calculation.

Clear a directional constraint

Select the atoms and choose Clear Direction. This removes the supported FixedLine/FixedPlane state while leaving the separate FixAtoms setting as configured. Verify the constraint summary before continuing.

Constraint-safe topology operations

Deletion, duplication, supercell construction, and trajectory-wide changes must remap or repeat supported atom indices. v_ase performs these operations in the backend and records them in history. After any atom-count change:

• inspect the constraint summary again;

• do not reuse old atom indices blindly;

• confirm that a supercell repeated each intended constraint; and

• verify that an Undo restores both topology and constraints.

Temporary fixed-host markers during Batch Add Atoms are not committed ASE constraints. They exist only in the staging optimizer and disappear after Finish or Cancel.

Relaxation prerequisites

Open Structure > Relaxation in Edit. Ordinary structure relaxation requires an attached ASE calculator. When a structure enters Edit without a calculator, v_ase attaches its built-in soft-repulsion fallback; View mode does not attach one. User-supplied ASE calculators are preserved.

Warning

The built-in calculator is a geometry conditioner for obvious short contacts. It is not a predictive interatomic potential. Attach an appropriate scientific ASE calculator before interpreting optimized energies, forces, structures, or reaction pathways physically.

Built-in repulsion calculator

Visual bonds and repulsive contacts are independent. Hiding a bond never disables repulsion, and drawing a bond never creates a force.

For an enabled label pair with separation r below its onset r_cut, the fallback pair energy is:

E_pair = 0.5 k_repulsion (r_cut - r)^2

Energy and force are exactly zero at and beyond r_cut. Therefore r_cut is the zero-force onset distance, not a hard minimum separation. Optimizer tolerance and any other forces determine the final distance.

Absolute pair distances

Pair distances / Å is the default cutoff definition. Each unordered complete-label pair owns an independent physical onset in angstrom, for example Cu_surface|O_ads. Suggested values come from ASE covalent-radius sums; van der Waals sums can be selected as a reference. A disabled pair or a value of 0 disables only that pair.

Scaled reference distances

Reference distances × multiplier multiplies the chosen reference table by one dimensionless contact multiplier. It is useful when all enabled contacts should be adjusted together. It does not reinterpret the result as a hard constraint.

Compute device

CPU is the default. CPU threads configures the built-in calculator’s parallel work. Torch is optional; without it the calculator uses NumPy. CUDA is available only when torch reports a working CUDA runtime. An unavailable CUDA request falls back to CPU and the effective device is reported in state.

The compiled matscipy neighbor engine filters candidate label pairs. This is an acceleration detail only: it does not alter cutoff values, minimum-image semantics, pair energy, or forces.

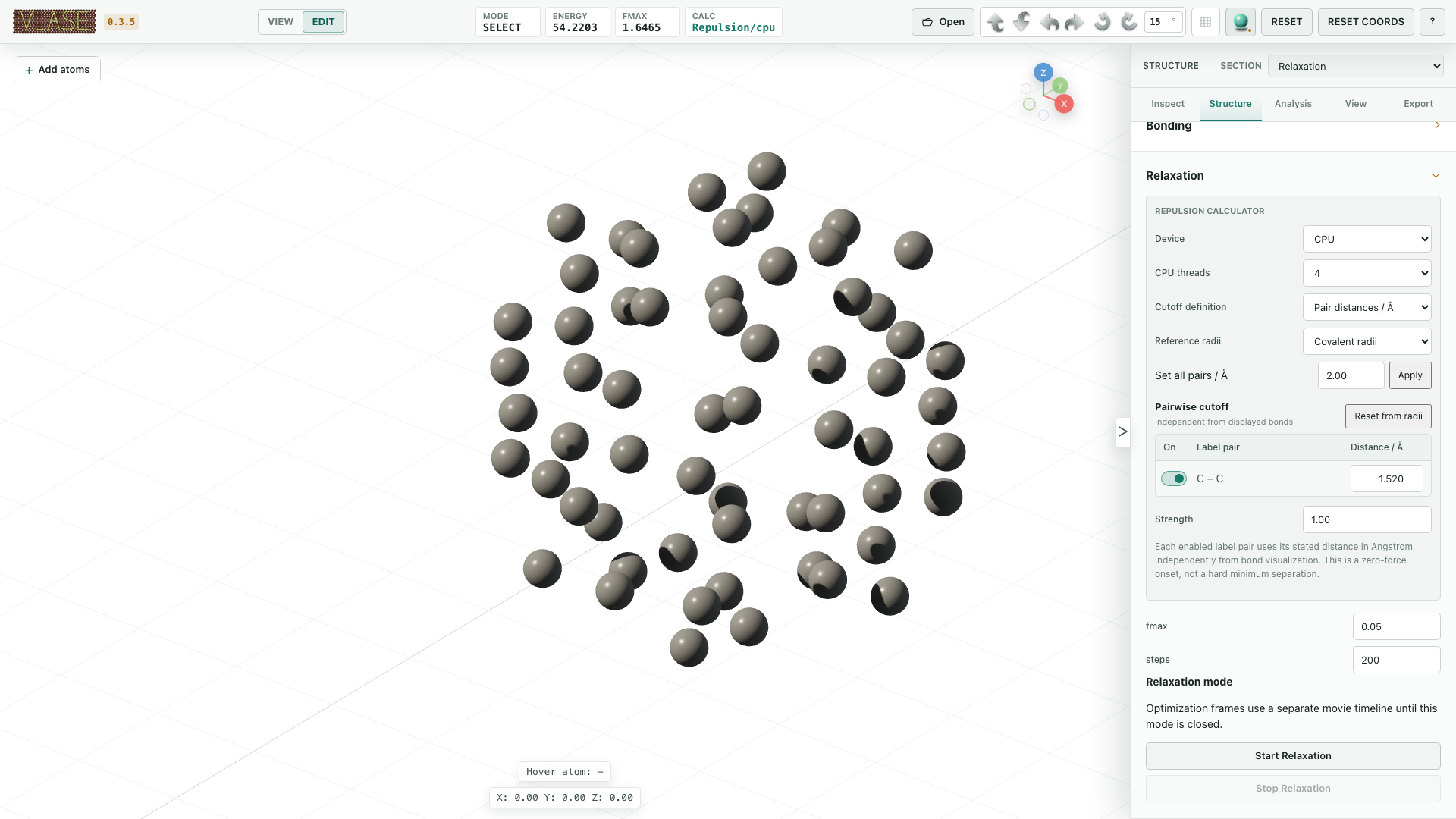

Run an ordinary relaxation

1. Confirm the active structure/frame and attached calculator.

2. Review Apply constraints.

3. Configure calculator/contact settings where the built-in calculator is active.

4. Enter positive fmax and an integer step limit.

5. Choose Start Relaxation.

6. Follow the dedicated Relaxation timeline and energy/force status.

7. Stop, restart, clear the movie, or exit deliberately.

Every optimizer step is retained in an operation-specific mode timeline. A loaded source trajectory remains separate; use the timeline selector below the viewport to distinguish them. Starting relaxation is one user-level history entry rather than one Undo entry per optimizer frame.

Stop and restart

Stop Relaxation requests a safe stop and retains the newest committed coordinates. A stopped run can be started again without leaving relaxation mode. Very short runs may finish before a visible running indicator appears; their initial, optimizer, and final states remain in the timeline.

Clear the trajectory

Clear Relaxation Trajectory removes only the optimization movie and leaves the mode active. Choose whether to retain the displayed frame or final frame. The retained structure becomes the current coordinate state.

Exit relaxation mode

Exit Relaxation Mode works while a run is active or after it stops. It invalidates the worker, removes the temporary timeline, and offers two scientifically distinct outcomes:

• Keep Current retains current coordinates; or

• Restore Before Relaxation restores the exact baseline from mode entry.

The source trajectory is not deleted.

Batch-placement relaxation

When an Add Atoms/Molecules staging session is active, the common Start Relaxation control routes through one AdditionRepulsionCalculator over the complete staged structure.

• The pre-session host remains immutable.

• Temporarily fix existing atoms is enabled by default.

• All inserted batches remain mobile/staged.

• Minimum-image search runs over the complete structure.

• Rigid molecule groups preserve their internal geometry when requested.

• Optional domain confinement keeps staged origins in the Allow-minus-Reject region.

• Every optimizer step goes to the separate Add Atoms timeline.

Appending another batch after relaxation resets the topology-specific Add timeline but retains the original host and all staged content. Finish is allowed only after the optimizer is inactive. It commits inserted atoms while restoring host coordinates, constraints, arrays, and calculator state exactly. Cancel restores the complete state from before the first placement.

See Editing structures for placement and region semantics.

Rigid-translation relaxation

Analysis > Rigid Translation has a separate optimizer mode for moving one selected component without changing its internal geometry. It can use two coordinates in a periodic (hkl) plane or three bounded Cartesian coordinates. Host atoms and cell vectors remain fixed. Its registry timeline, finish, and cancel semantics are distinct from ordinary structure relaxation. See Trajectories and analysis and Periodic interfaces.

Semantic commands

Constraint edit:

{
  "expectedRevision": 12,
  "mode": "edit",
  "selection": {"clear": true, "indices": [10, 11]},
  "operation": {
    "name": "set-constraints",
    "fixAtoms": false,
    "kind": "fixed_plane",
    "vector": [0, 0, 1]
  }
}

Use "clearDirectional": true to clear a directional constraint while preserving the requested FixAtoms state.

Ordinary or Add-session relaxation:

{
  "expectedRevision": 13,
  "mode": "edit",
  "applyConstraints": true,
  "operation": {
    "name": "start-relaxation",
    "fmax": 0.05,
    "steps": 300,
    "calculator": {
      "device": "cpu",
      "cpu_threads": 4,
      "cutoff_mode": "absolute",
      "cutoff_basis": "covalent",
      "pair_cutoffs": {
        "Cu_surface|O_ads": 2.1,
        "O_ads|O_ads": 1.5
      },
      "k_repulsion": 2.0
    }
  }
}

Calculator fields are snake_case inside the calculator object. Pair keys use complete visual labels in canonical unordered form. After starting, consume collaboration/relaxation events or poll describe until the corresponding running/is_relaxing state is false.

The example revisions are illustrative. Re-read describe after every mutation and replace them with the document’s latest collaboration.revision.

Related operations are:

• start-relaxation, stop-relaxation;

• clear-relaxation-trajectory, exit-relaxation-mode;

• compatibility aliases relax-added-atoms, stop-added-atoms; and

• registry-specific start/run/stop/finish/cancel operations.

Verification checklist

Before accepting a constrained or relaxed result, verify:

• constraint kind, exact atom indices, and direction/normal;

• whether Apply constraints was enabled for each physical edit;

• fixed atoms and disallowed displacement components remained unchanged;

• Hookean state matches the exact r <= rt / r > rt threshold;

• calculator name, device, cutoff mode, pair table, strength, fmax, and step limit;

• the optimizer is inactive before finish or export;

• source, ordinary relaxation, Add Atoms, and registry timelines were not confused;

• the intended frame was retained when clearing or exiting; and

• Undo or baseline restoration recovers coordinates and constraints together.
